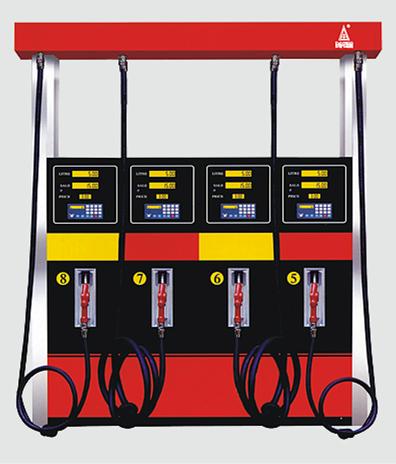

Tech Series Fuel Dispensers

4 products
8 nozzles
8 displays
4 motors
4 pumps
8 flow meters

■ Features
1. Adopting combination pump or separate pump、smaller shape and convenient maintenance.
2. Adopting painting-side for common type and stainless steel side for luxurious type.
3. Leading-static and Hihgly-hang oil pipe(inner-diameter φ 19mm,length 4500mm).
4. Features fueling as ration、 resetting by computer and redisplaying when power cut.
5. Big-size aluminium nozzle booter.
6. Submersible pump to be optional.
7. Flow meter features high precision and strong reliability.
8. Excellent electromagnetic compatibility and strongly anti-jamming.
9. Be capable of connectiong with central computer in gas station.
10. Conveniently combining and extending function.
11. To update IC card fuel dispenser.

■ Technical index and parameter
Ambient temperature: -40℃ ~ +55℃
Humidity: 30 ~ 90%
Max flow: 50L/min
Accuracy:±0.3%
Repeating error:≤0.15%
Inlet pressure: ≥54kPa
Outlet pressure: ≤0.3MPa
Power: 380V 50Hz (220V to be optional)
Noise: ≤80dB(A class)
Unit price range: 0.01 ~ 99.99
Single volume range: 0.01~ 9999.99
Accumulative volume range: 0.01 ~ 9999999999.99
Explosion-proof certifcate: CE011195
Explosion-proof sign: Exdm Ⅱ AT3

■ Fixation attentions
1. For machine fixation within broken line is tunnel, from which oil input pipe、power cable、communication cable and ground wire are led to connect machine.

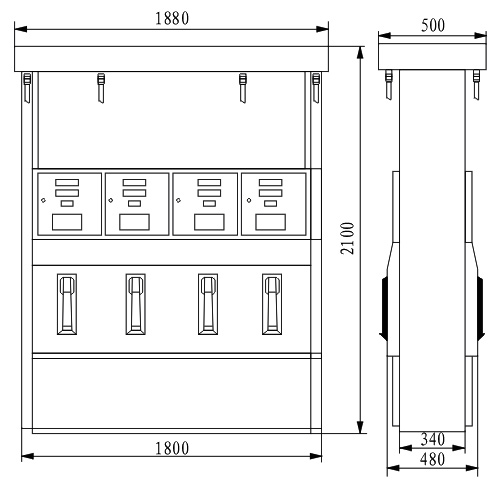

2.Oil pipe inlet joined to waval pipe shoule be 30mm higher than base surface. The length of screw thread at the end or oil pipe inlet should be Φ20mm(see the right picture).
3.Take oil-resisting and coating sleeve PVC cable [RVV5 (or 4) x2.5mm²] as power cable. Cable should be protected by wire pipe, which is 30mm higher than base surface. It is necessary to remain 2m cable for mount.
4.Ground bolt （4-M14-300） is 60 mm higher than base surface. Earth depth in which ground bolt is embed is not less than 50mm
5.In consideration of fuel dispensers network in the near future, it should embed wire pipe of communication cable(Φ200mm
